TEST - FREE APP

Pt98

We invite

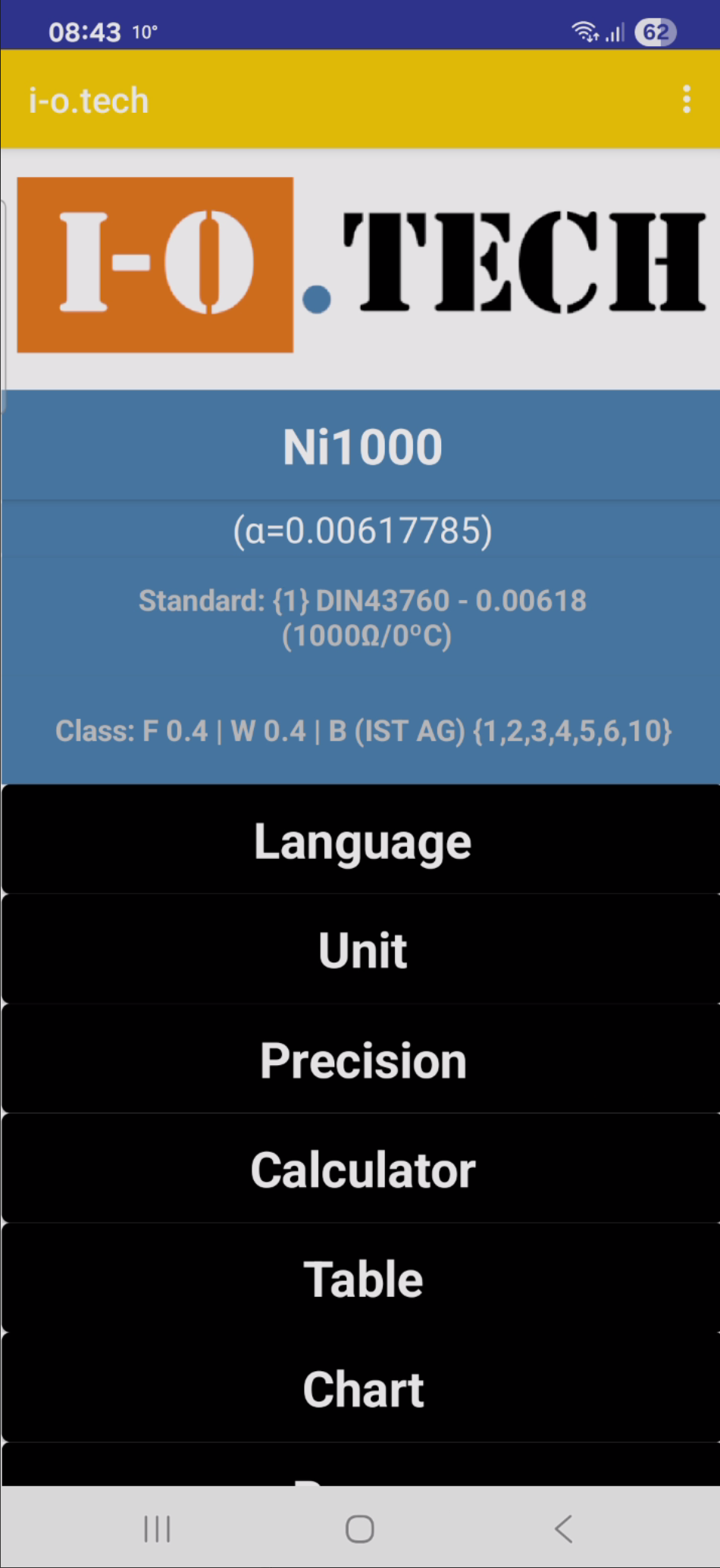

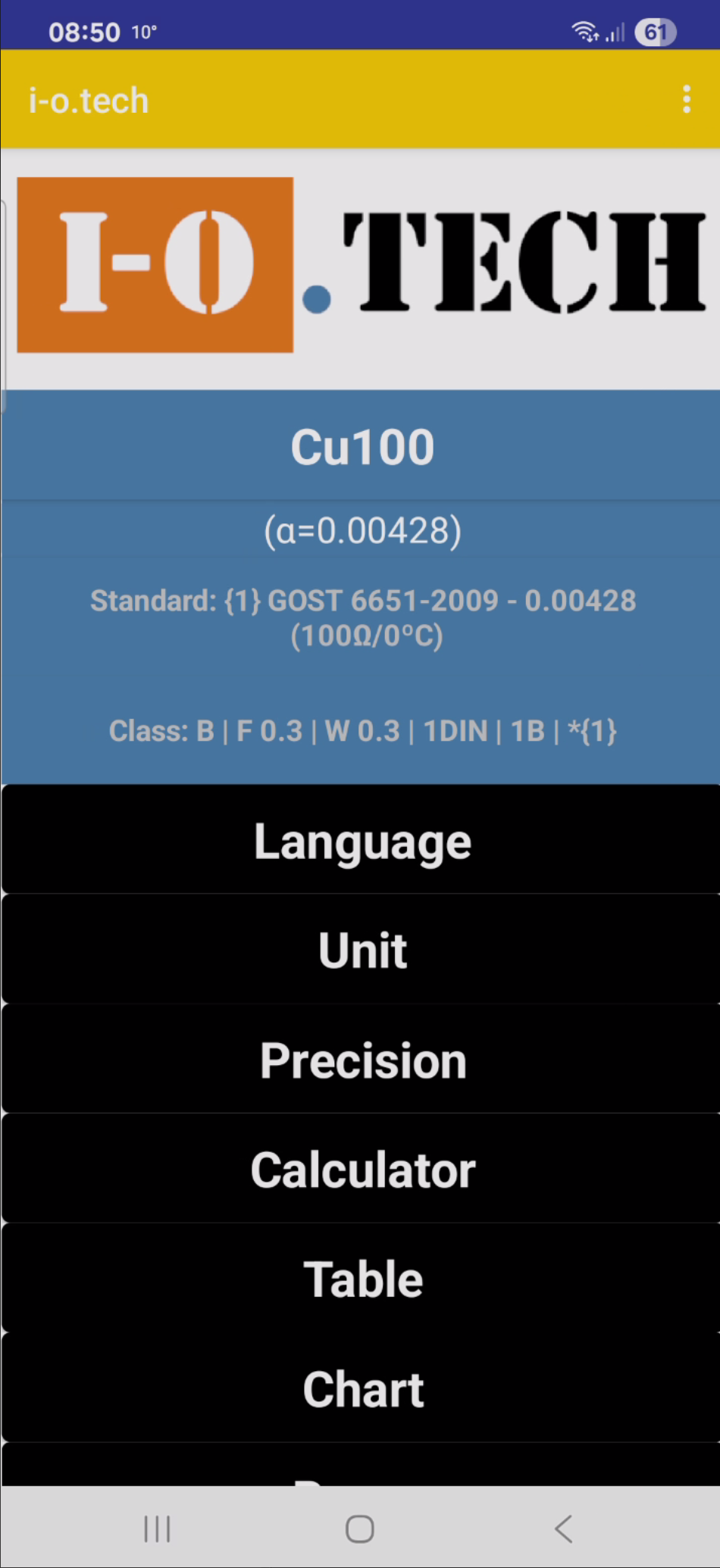

Click on the i-o.tech logo. Select menu to hide - red. Select menu to discover - green.

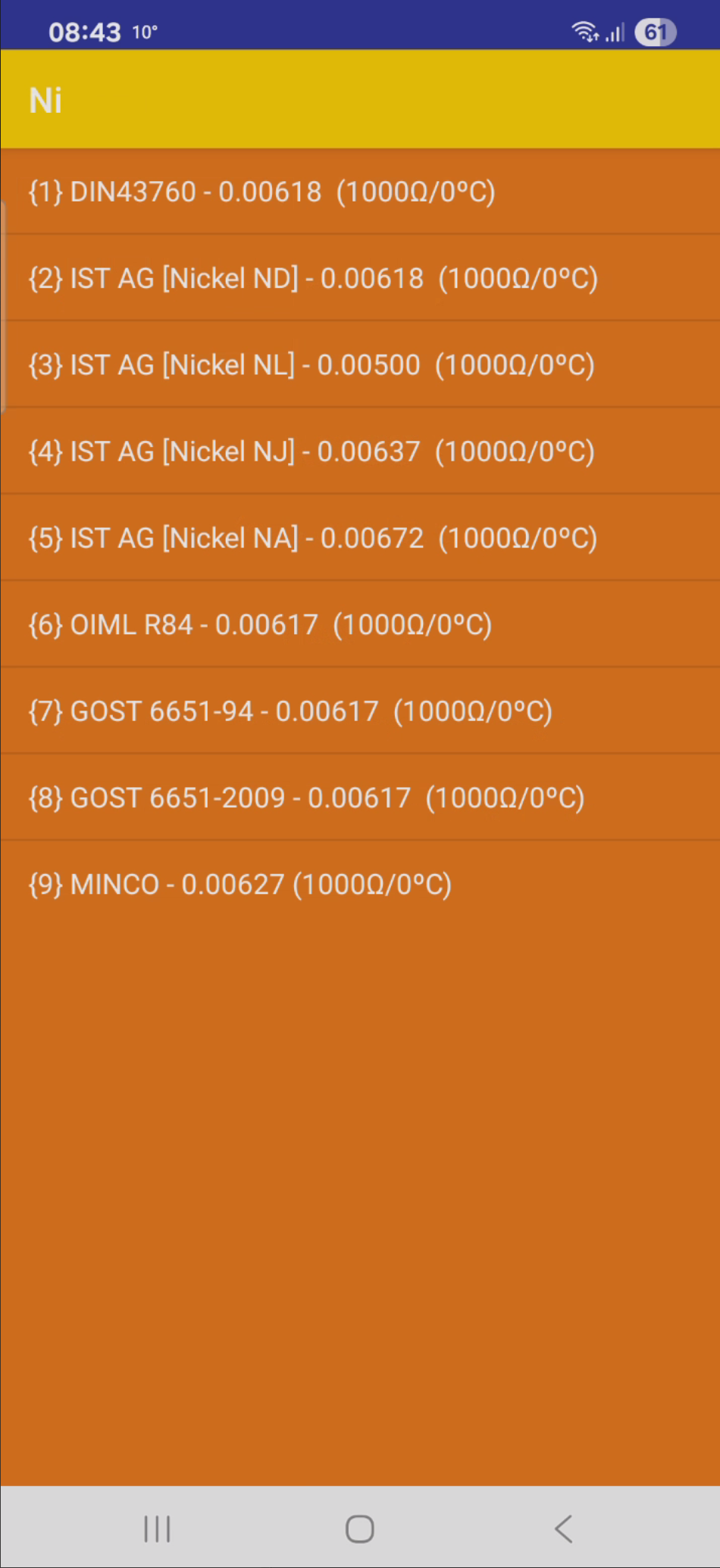

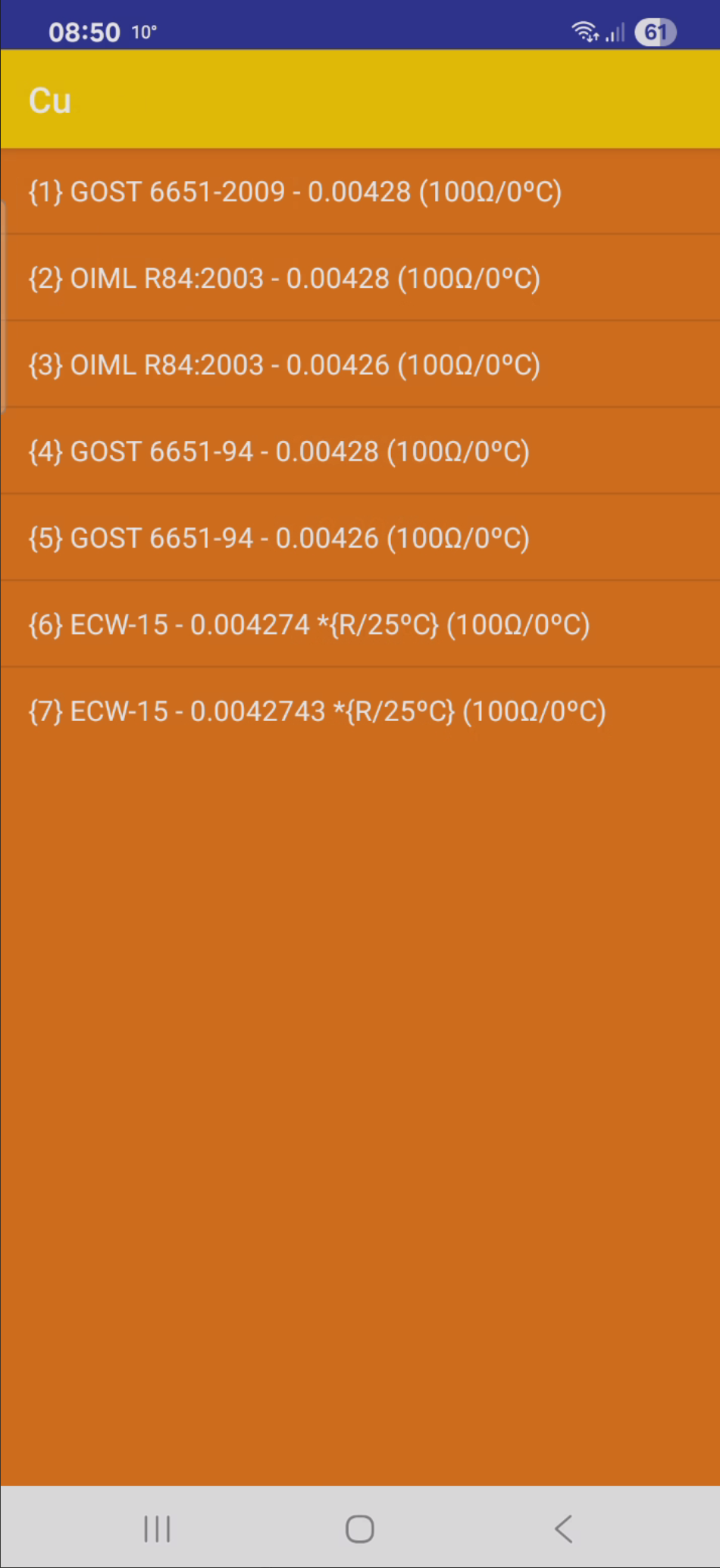

Under the sensor type ( Ni10000) click on the Standard and select

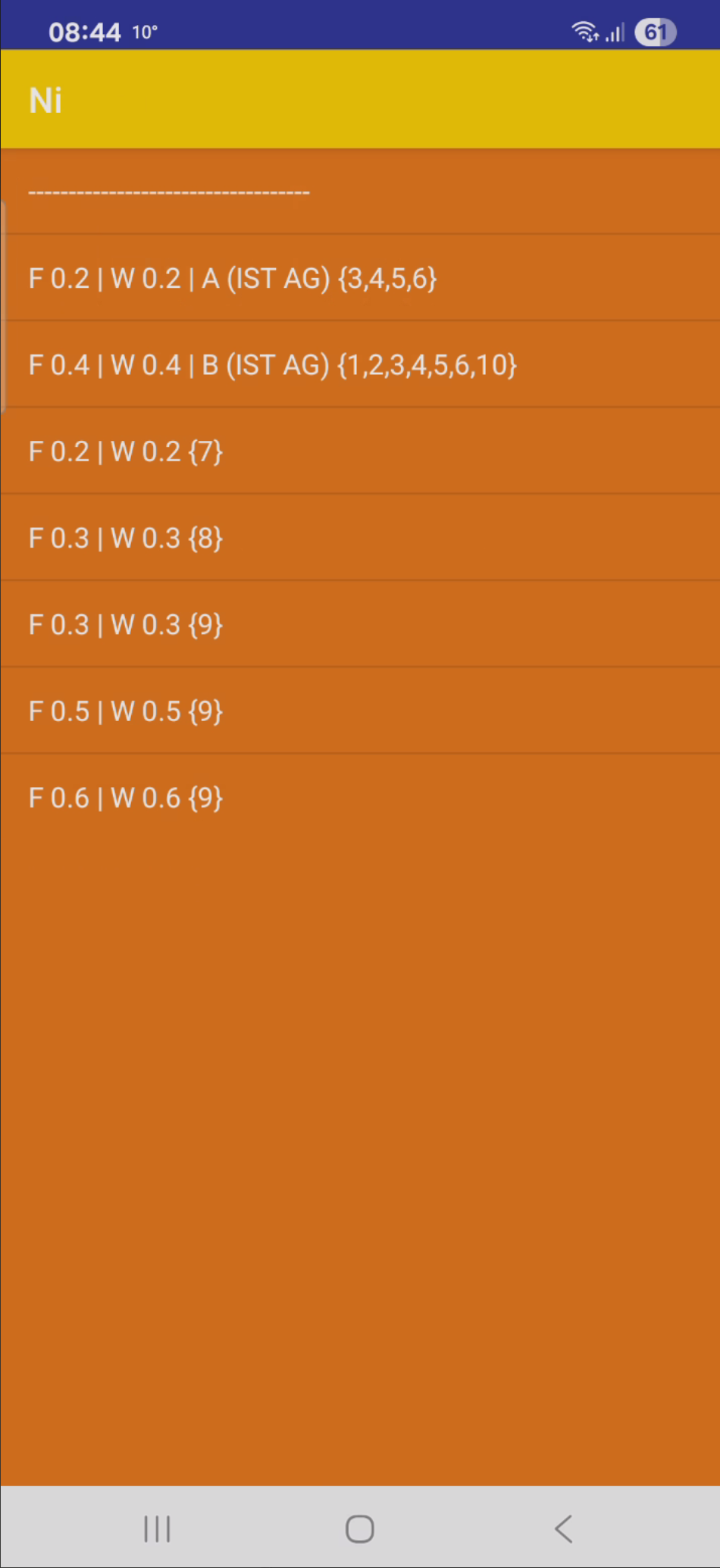

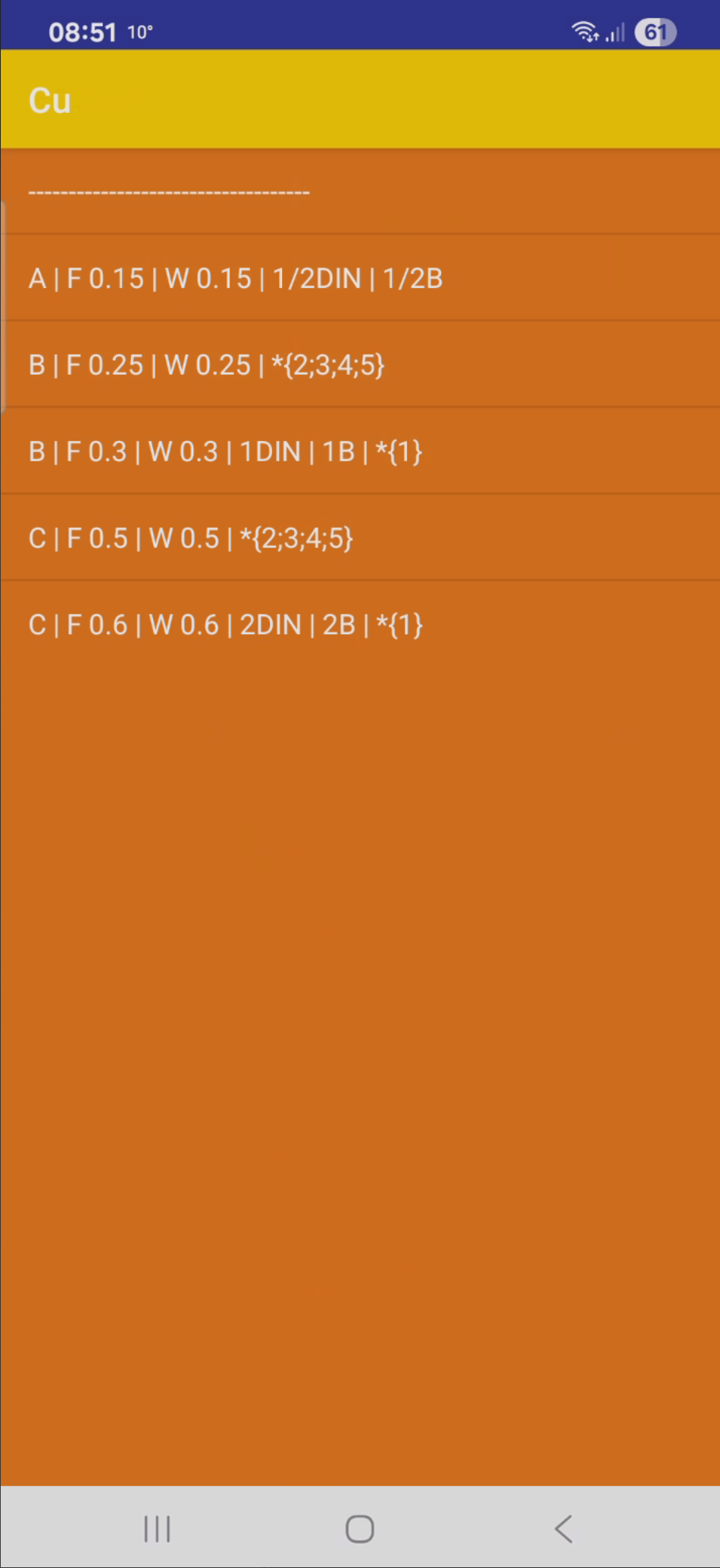

Under the sensor type ( Ni10000) click on the Class and select

In Menu click on the Language and select a flag.

In Menu click on the Unit and select unit of temperature.

In Menu click on the Precision and select.

In Menu click on the Calculator. Set the Temperature or set the Resistance.

In Menu click on the Table. Set the Temperature: From, By, To and click button Generate Table.

First, generate a table. Then in Menu click on the Chart.

In Menu click on the Range.

In Menu click on the Close and next YES.
